Ppofessional 5 Head Moulder for processing,MDF strip, HDF strip, floor,door. VH-M521 for window frame processing

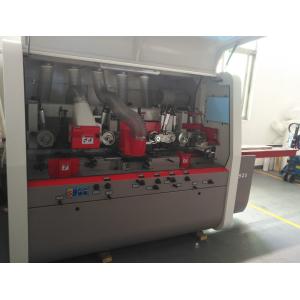

Four Side Moulder VH-M521 for window frame
| 4 Side Moulders are used for processing products in solid wood, panels such as MDF , plastics or similar
materials . Therefore , 4 Side Moulders are one of the most important production facilities , widely used in
furniture manufacturer . This four side moulder VH-M521 is used for processing Medium cutting capacity
strip , MDF strip , HDF strip , floor , doors , Solid wood furniture and Square boards. |
VH-M521 Outstanding Character
| | Heavy-duty cutting gear case
The feeding roller transmits through cardan joints and
gear case , which guarantees strong power . Smooth
feeding , powerful transmission and precise feeding . |
| | Every cutter shaft is assembled and tested under air-
conditioned environment and is supported by SKF
bearing . The stable- worked shaft guaratees the
surface roughness of finished products . |
| |
Quick liftable short material device
This mechanism enables the smooth feeding for short
woods . The auxiliary feeding rooler has the function of
transmission , which makes the feeding more briskly . With
liftable feeding roller , you can change and adjust the shaft easily . |
| | The back lower shaft table can be adjusted freely , so
you can change the knives easily . |
Parameters of VH-M521
| Model | VH-M521 | |
| Specification | Working width | 25-210 |
| Working thickness | 8-140 | |
| Working table length | 1970 | |
| Feeding speed | 6-36 | |
| Main spindle diameter (mm) | Φ 40 | |
| Main spindle revolution(r/min) | 6500 | |
| Air pressure (Mpa) | 0.6 | |
| Motor power(KW) | 1st LowerShaft | 5.5kw/7.5HP |
| Right vertical spindle | 5.5kw/7.5HP | |
| Left vertical spindle | 5.5kw/7.5HP | |
| 1st UpperShaft | 7.5kw/10HP | |
| 2nd Lower Shaft | 5.5kw/7.5HP | |
| Feeding beam lifting | 0.55kw/0.75HP | |
| Feeding motor | 4kw/5.5HP | |
| Total power | 34.05kw/46.26HP | |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| Right Vertical spindle | Φ 125-Φ 180 | |
| Left vertical spindle | Φ 125-Φ 180 | |
| 1st Upper Shaft | Φ 125-Φ 180 | |
| 2nd Lower Shaft | Φ 125-Φ 200 | |
| Remark | Feeding wheel diameter (mm) | Φ140 |
| Dust outlet diameter(mm) | Φ140 |
